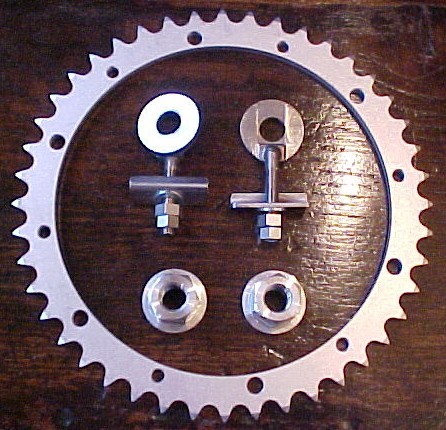

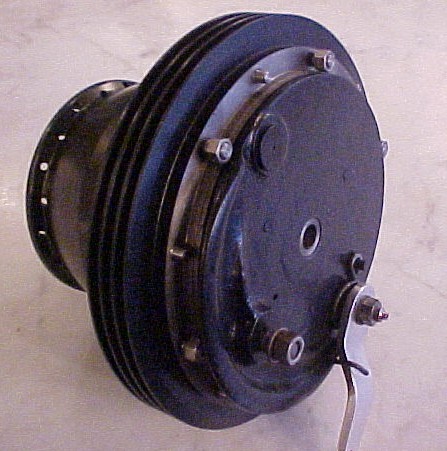

10th November 2002. We have now received the new Manx hub which has been made by Dick Hunt Racing, from Woodham in Surrey, and machined to match our brake back plate. He has relined our original magnesium brake shoes and supplied new wheel nuts and adjusters, and also kindly donated a new rear 44 tooth sprocket to replace the one lost in the fire.

Manx hub.jpg (63045 bytes) sprocket.jpg (77034 bytes)



17/12/04 - We have now started to get the new engine together and here's a few pics of the new components.

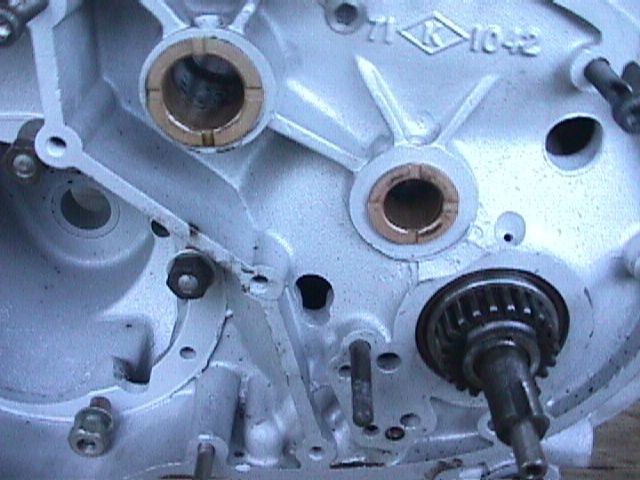

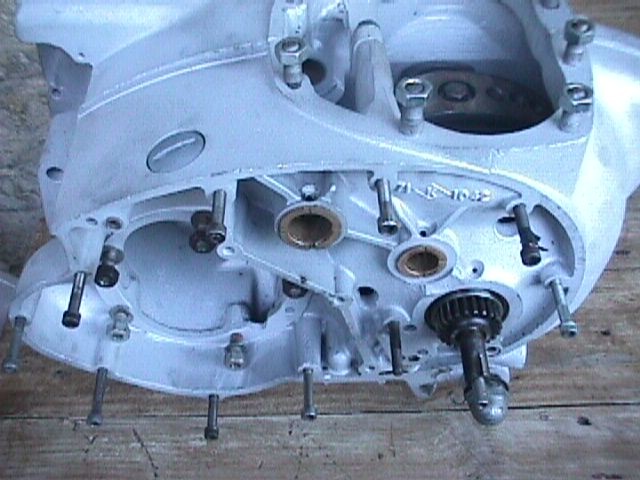

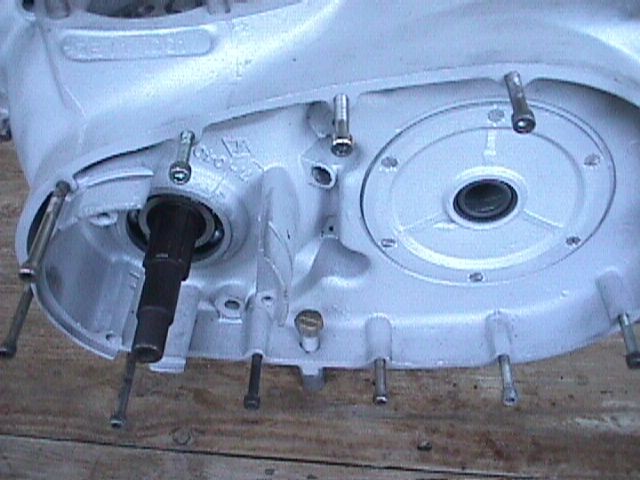

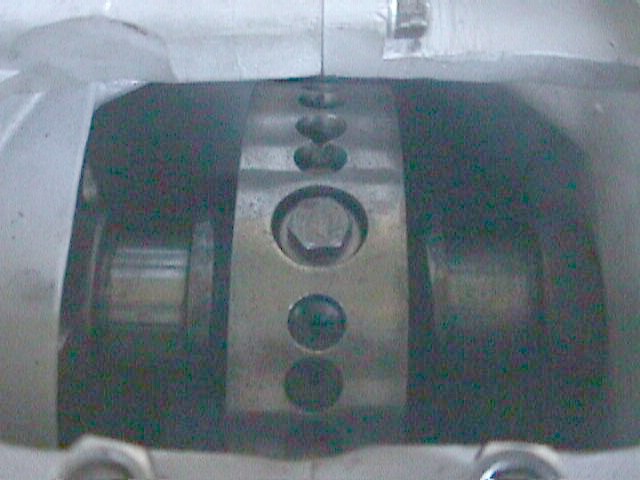

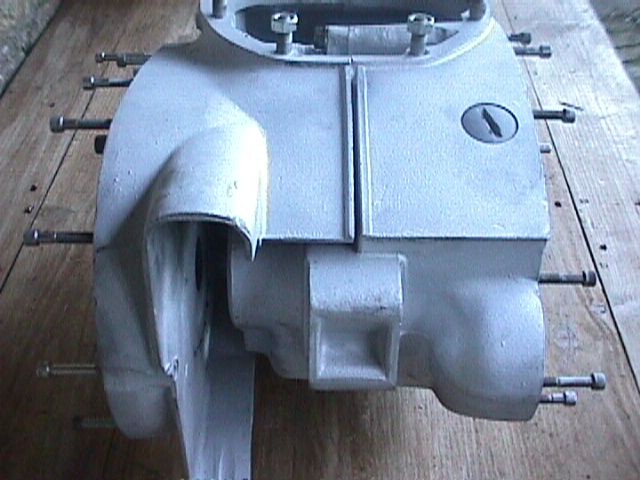

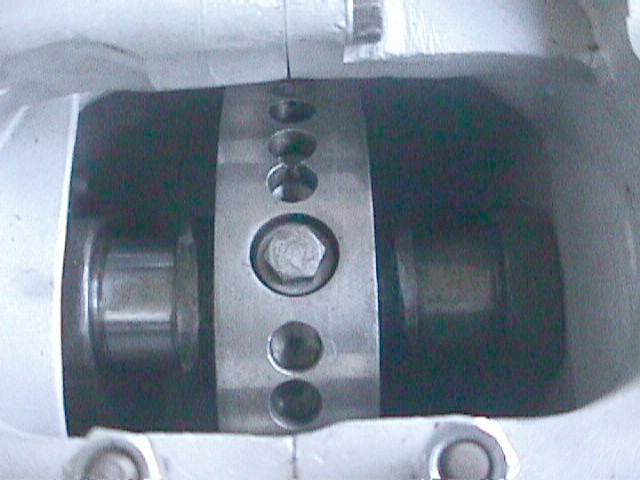

Crankcase rear.jpg (73031 bytes) Crankcase right.jpg (78506 bytes) Crankshaft left end.jpg (70415 bytes) Crankshaft right end.jpg (75876 bytes)Crank bigends.jpg (57402 bytes) Crank flywheel.jpg (53864 bytes)

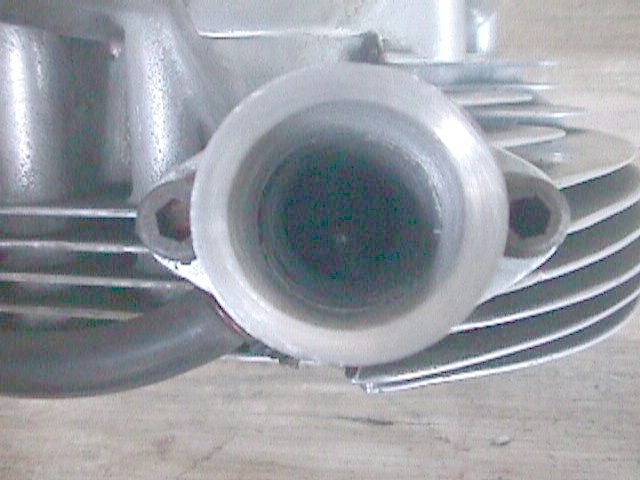

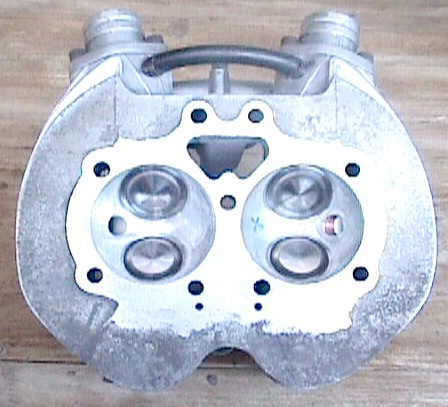

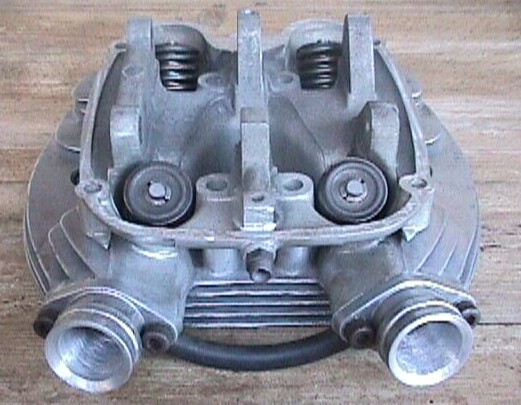

Head top.jpg (68380 bytes) Head valves.jpg (53290 bytes) Head inlet.jpg (61491 bytes)
